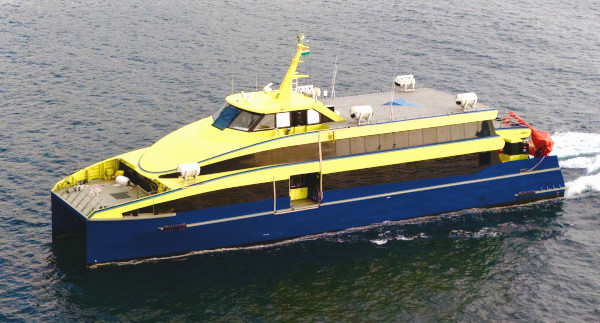

FLEX FERRY X
HSC Code Passenger Ferries
From Asia to Europe
| Vessel Overview |
| Vessel |
Aluminium Catamaran HSC Ferry
Jointly developed by Penguin Shipyard and
Incat Crowther |
| Classification |
Bureau Veritas
| ✠Hull ✠Mach, HSC Cat A – Sea Area 2 |
| Safety Regulation |
BV and Singapore Flag State requirements |
| Regs., Codes, Guidelines |
HSC, SOLAS, ISM, ISPS |
| Hull Particulars |
| Length Overall |
36.20 m |
| Length Waterline |
35.00 m |
| Beam |
9.50 m |
| Depth |
3.40 m |
| Hull Draught |
1.20 m |
| Draught (to prop tips) |
1.78 m |
| Tonnage |
| GRT |
Approx. 394 MT |
| NRT |
Approx. 133 MT |
| DWT |
Approx. 48 MT |
| Accommodation and Amenities |
| Passenger Seating Capacity |
262 pax |
| Main Deck |
218 pax |
| Upper Deck |
44 pax |
| Outdoor |
16 pax (not counted in total pax capacity) |
| Main Deck Entertainment System |
8 x LCD TV screens |
| Main Deck Toilets |
3 cubicles |
| Upper Deck Entertainment System |
2 x LCD TV screens |
| Upper Deck Toilet |
1 cubicle |
| Luggage Rack |
Fitted |
| Beverage and Food Kiosk |
Fitted |
| Tank Capacities |
| Fuel Oil |
22,000 L |
| Fresh Water |
1,500 L |
| Black Water |
1,000 L |
| Bilge / Oily Water |
450 L |
| Performance |
| Maximum Speed |
27 knots @ 100% MCR |
| Maximum Fuel Consumption |
510 L/hr |
| Cruising Speed |
25 knots @ 85% MCR |
| Cruising Fuel Consumption |
490 L/hr |
| Main Machinery |
| Number of Main Engines |
2 units with resilient mountings |
| Make / Model |
MAN D2862 LE483 |
| Total BHP |
2 x 1450 BHP @ 2100 rpm |
| Propellers |
2 x fixed pitch, Ni-Al-Bronze, 5 blades |
| Generating Sets (Auxiliaries) |
| Generators |
2 x Caterpillar SR4 Alternator 86 ekW |
| Prime Movers |
2 x 125 BHP @ 1500 rpm |
| Make / Model |
Caterpillar C4.4 |
| Vessel Power Supply |
415 Volt AC, 50 Hz, 3-phase, IP23 |
| Electronics and Controls |
| GMDSS |
Sea Area A1+A2 |
| VHF |
Sailor 7222 |
| BNWAS |
LeGuardian 2025 |
| Marine Radar |
Simard Argus12U / 6XPHSC |
| GPS |
Simard GN70 |
| ECDIS |
Simard MK15 |
| Depth / Echo Sounder |
Simrad S3009 |
| Autopilot |
AP70 |
| Gyro Compass |
Simrad GC85 |
| Magnetic Compass |
Mcmurdo SMARTFIND |
| Navtex |
JMC NT-1800C |
Public Address /
Intercom System |
Vingtor SPA240V2 |
| Search Lights |
1000W |
| EPIRB |
Mcmurdo E5 |
| SART |
Mcmurdo S4 |
| AIS |
Simrad V5035 |
| CCTV |
15 units fitted
(6 x Exterior, 5 x Passenger Area, 4 x Engine Room) |
| Safety of Life At Sea (SOLAS) Equipment |
| Life Rafts |
2 x 100-man each side as per SOLAS |
| Life Jackets |
284 on board as per SOLAS |
| Child Life Jackets |
28 on board as per SOLAS |
| Infant Life Jackets |
6 on board as per SOLAS |
| Life Buoys |
6 on board as per SOLAS |
| Rescue Boat |
6-Person 25hp Rescue Boat with SOLAS MED Approval |
| Other Equipment |
Pyrotechnics, line-throwing apparatus |
| FLEX FERRY Options (additional costs apply) |
| Business Class Seats |
| Solar Panels |
For General Arrangement and other additional details, please contact
